1F2G
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Fast Recovery Rectifier
- Datasheet
- 1F1G-1F7G
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 100V |
| Maximum RMS Voltage | VRMS | 70V |
| Maximum DC blocking Voltage | VDC | 100V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 1A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 30A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 1.3V |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 5μA |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 100μA |
| Typical Junction Capacitance | Cj | 15pF |
| Maximum Reverse Recovery Time | TRR | 150ns |
| Typical Thermal Resistance | R(ja) | 50°C/W |
| Storage and Operating Junction Temperature | TSTG, Tj | -55to+150 |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C] | Ir | - |
Features
- Molded case feature for auto insertion
- High current capability
- Low leakage current
- High surge capability
- High temperature soldering guaranteed
- 250°C /10sec/0.375" lead length at 5 lbs tension
- Glass Passivated chip

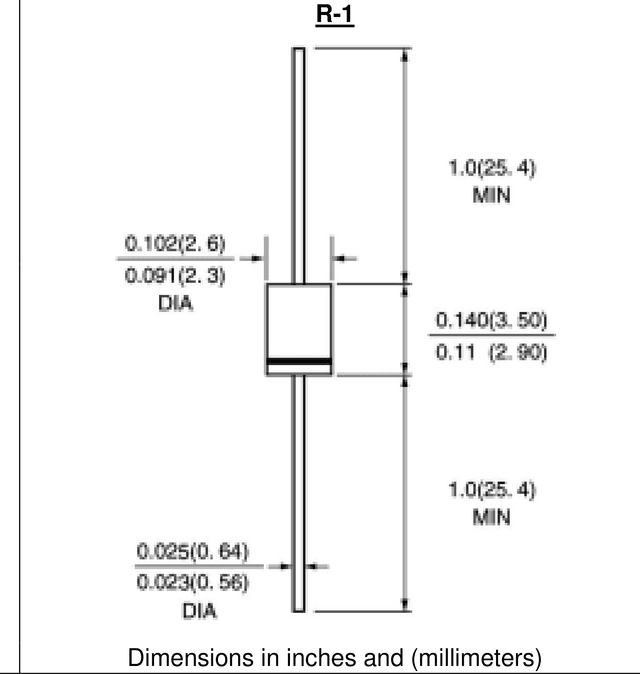

Mechanical Data
- Terminal
- Plated axial leads solderable per MIL-STD 202E, method 208C
- Case
- Molded with UL-94 Class V-0 recognized Flame Retardant Epoxy
- Polarity
- color band denotes cathode
- Mounting Position
- any
Notes
- [1]Measured at 1.0 MHz and applied voltage of 4.0Vdc
- [2]Test Condition If =0.5A, Ir =1.0A, Irr =0.25A
- [3]Thermal Resistance from Junction to Ambient at 0.375" lead length, P.C. Board Mounted
