1N5552

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Product Spectation

ParameterSymbolValue
Maximum Recurrent Peak Reverse VoltageVRRM600V
Maximum RMS VoltageVRMS420V
Maximum DC blocking VoltageVDC600V
Maximum Reverse Breakdown Voltage I =50µA RVBR660V
Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°CIf(av)3A
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated loadIFSM100A
Maximum Forward Voltage at rated Forward Current and 25°CVf1.2V
Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃Ir1μA
Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃Ir100μA
Typical Reverse Recovery TimeTRR2s
Typical Junction CapacitanceCj40pF
Typical Thermal ResistanceRth(ja)20°C/W
Storage and Operating Junction TemperatureTSTG, Tj-65to+175
Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C]Ir-
Maximum full load reverse current full cycle average at 55°C AmbientIr(av)-
Typical Thermal ResistanceR(ja)-

Features

  • High temperature metallurgically bonded construction
  • Sintered glass cavity free junction
  • Capability of meeting environmental standard of
  • High temperature soldering guaranteed
  • 350C /10sec/0.375”lead length at 5 lbs tension
  • Operate at Ta =55C with no thermal run away
  • Typical Ir<0.1A

Mechanical Data

Terminal
Plated axial leads solderable per J-STD-002

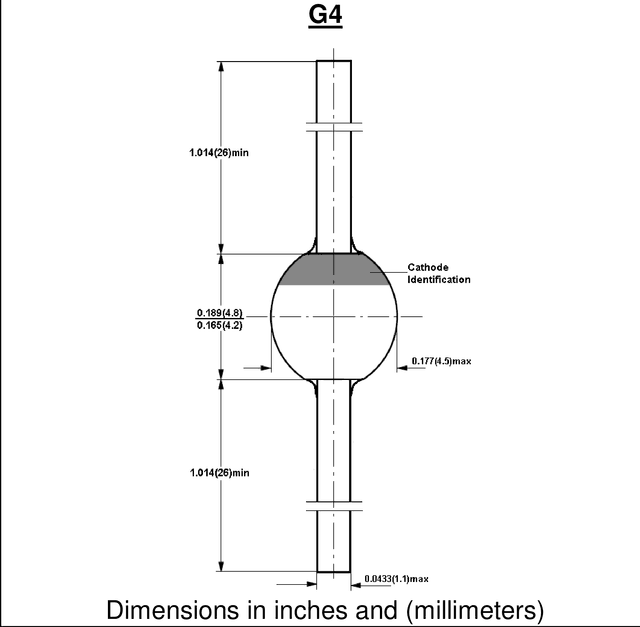

Case
G-4 sintered glass casey
Polarity
color band denotes cathode
Mounting Position
any

Notes

  • [1]Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A
  • [2]Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc
  • [3]Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted
