1N5809-1
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Avalanche Rectifier
- Datasheet
- 1N5809-1
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 100V |
| Maximum RMS Voltage | VRMS | 70V |
| Maximum DC blocking Voltage | VDC | 100V |
| Maximum Reverse Breakdown Voltage I =50µA R | VBR | 110V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta=55℃ | IFAV | 6A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 125A |
| Maximum Forward Voltage at rated Forward Current and 25℃ | VF | 0.875V |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =100℃ | IR | 5μA |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =100℃ | IR | 150μA |
| Maximum Reverse Recovery Time | TRR | 30ns |
| Typical Thermal Resistance | Rth(jl) | 35.5°C/W |
| Storage and Operating Junction Temperature | TSTG, Tj | -65to+175 |
Features
- Glass passivated
- Hermetically sealed package
- Low reverse current
- Soft recovery characteristics
Mechanical Data
- Case

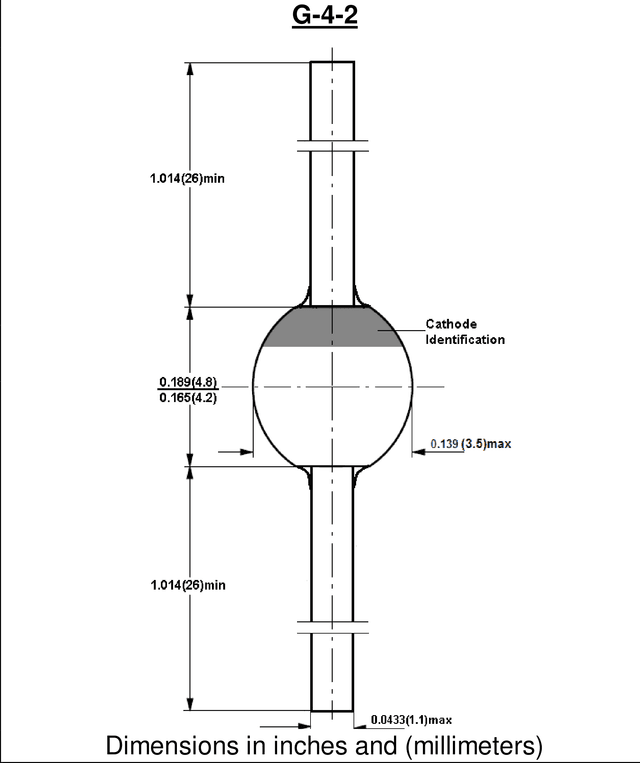

- G-4 sintered glass case
- Terminal
- Plated axial leads solderable per MIL-STD 202E, method 208C
- Polarity
- color band denotes cathode end
- Mounting Position
- any
Notes
- [1]Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A
