1SS133
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Switching Diode (Small-Signal)
- Datasheet
- 1SS133
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Recurrent Peak Reverse Voltage | VRM | 90V |
| Recurrent Voltage | Vr | 80V |
| Average Forward Rectified Current Half-Wave Rectification With Resistive Load at Tamp=25°C | If(av) | 130mA |
| Peak Forward Surge Current T<1.0ms and Tj=25°C | IFSM | 600mA |
| Power dissipation at tamp=25°C | PTOT | 400mW |
| Typical Thermal Resistance | R(ja) | 350°C/W |
| Operating Temperature Range | Tj | 175°C |
| Storage Temperature | TS | -65~+175 |
Features
- Silicon Single Junction Diode
- Fast switching Diode
Mechanical Data
- Case

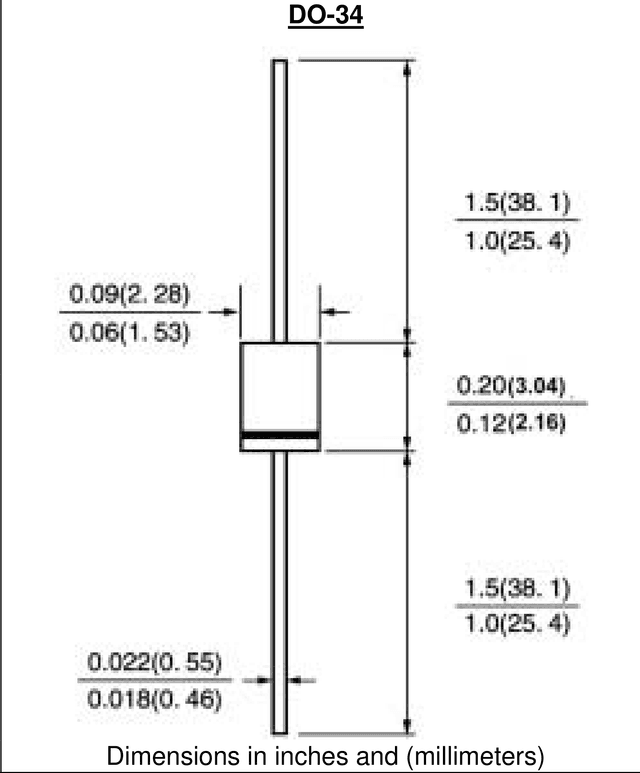

- DO-34 Glass case
- Polarity
- color band denotes cathode
- Mounting Position
- any
- Weight
- approx . 0.12g
Notes
- [1]Valid provide that leads at a distance of 8mm from case are kept at ambient temperature
