BYW76
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Avalanche Rectifier
- Datasheet
- BYW76
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 600V |
| Maximum RMS Voltage | VRMS | 420V |
| Maximum DC blocking Voltage | VDC | 600V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta=55℃ | IFAV | 3A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 100A |
| Maximum Forward Voltage at rated Forward Current and 25℃ | VF | 1.1V |
| Non-repetitive peak reverse avalanche energy | ERSM | 10 |
| Maximum DC Reverse Current Ta =25°C at rated DC blocking voltage Ta =165°C [Ta=25°C] | IR | 5μA |
| Maximum DC Reverse Current Ta =25°C at rated DC blocking voltage Ta =150°C [Ta=150°C] | IR | 150μA |
| Maximum Reverse Recovery Time | TRR | 200ns |
| Typical Thermal Resistance | Rth(ja) | 25°C/W |
| Storage and Operating Junction Temperature | TSTG, Tj | -55to+175 |
Features
- Glass passivated
- Low reverse current
- Soft recovery characteristics
- Guaranteed avalanche energy absorption capability
Mechanical Data
- Case

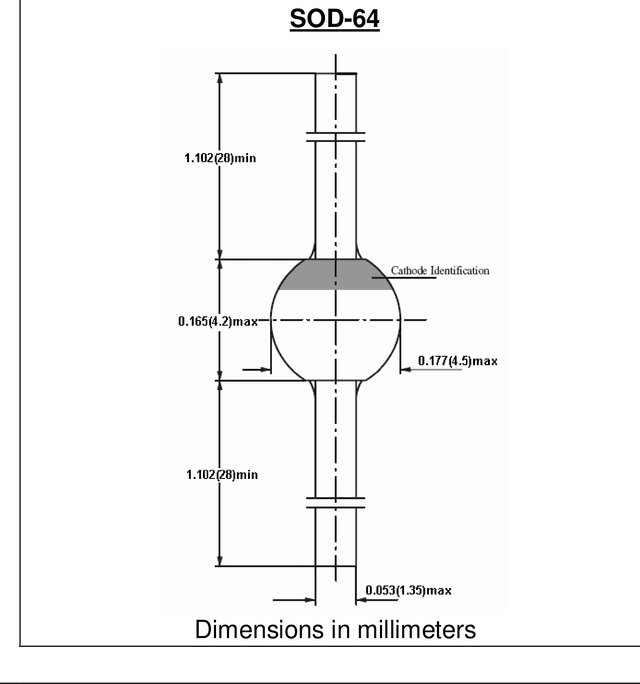

- SOD-64 sintered glass case
- Terminal
- Plated axial leads solderable per MIL-STD 202E, method 208C
- Polarity
- color band denotes cathode end
- Mounting Position
- any
Notes
- [1]Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A
- [2]I =10mm,T = constant L
