D1N5806
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Avalanche Rectifier
- Datasheet
- D1N5806
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 160V |
| Maximum RMS Voltage | VRMS | 112V |
| Maximum DC blocking Voltage | VDC | 160V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta=55℃ | IFAV | 1A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 25A |
| Maximum Forward Voltage at rated Forward Current and 25℃ | VF | 0.875V |
| Maximum DC Reverse Current at V =160V and 25℃ DC | IR | 1μA |
| Maximum DC Reverse Current at V =160V and 150℃ DC | IR | 200μA |
| Maximum Reverse Recovery Time | TRR | 25ns |
| Typical Junction Capacitance | Cj | 25pF |
| Typical Thermal Resistance | Rth(ja) | 45°C/W |
| Storage and Operating Junction Temperature | TSTG, Tj | -65to+175 |
Features
- Glass passivated
- Hermetically sealed package
- Low reverse current
Mechanical Data
- Case

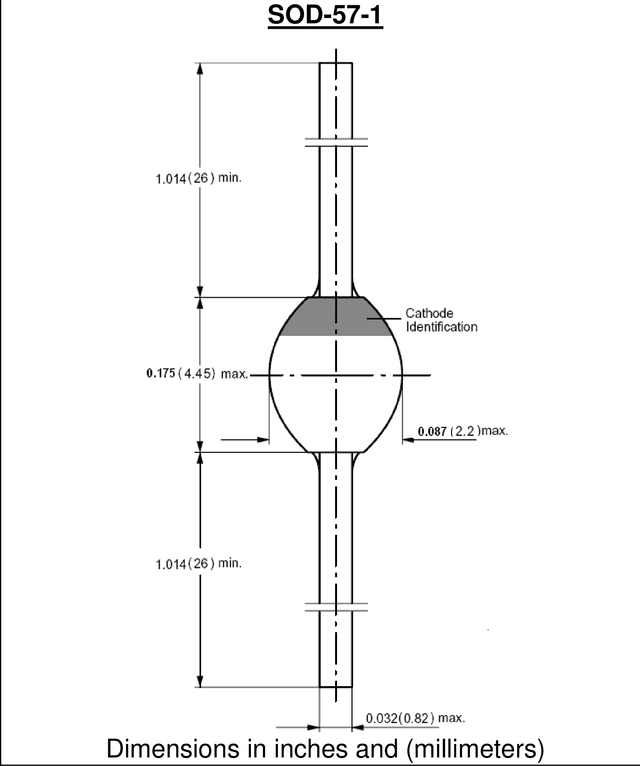

- SOD-57 sintered glass case
- Terminal
- Plated axial leads solderable per MIL-STD 750, method 2026
- Polarity
- color band denotes cathode end
- Mounting Position
- any
Notes
- [1]Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A
- [2]Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc
- [3]Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted
