EF60D

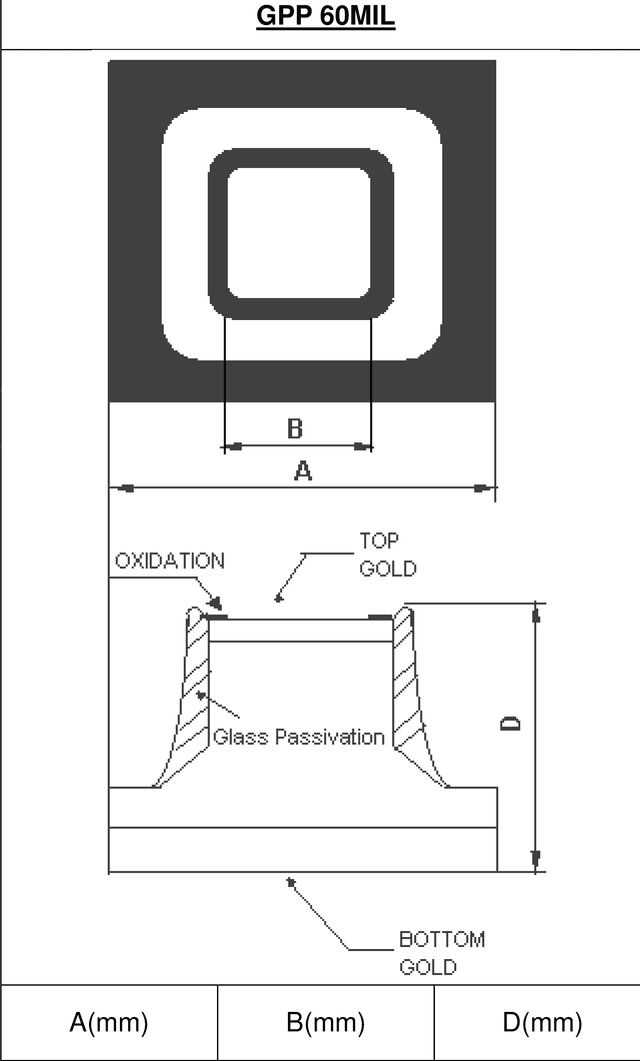

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Ultrafast Rectifier
- Datasheet
- EF60D
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 200V |
| Maximum RMS Voltage | VRMS | 140V |
| Maximum DC blocking Voltage | VDC | 200V |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 100A |
| Maximum Forward Voltage at rated Forward Current and 25°C | VF1 | 0.95at=2.0A |
| — | VF2 | 1.30at=6.0A |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C] | Ir | 5μA |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=125°C] | Ir | 50μA |
| Maximum Reverse Recovery Time | TRR | 25ns |
| Storage and Operating Junction Temperature | TSTG, Tj | -55to+150 |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | - |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | - |
| Typical Junction Capacitance | Cj | - |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | - |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | - |
