G2SB480-E

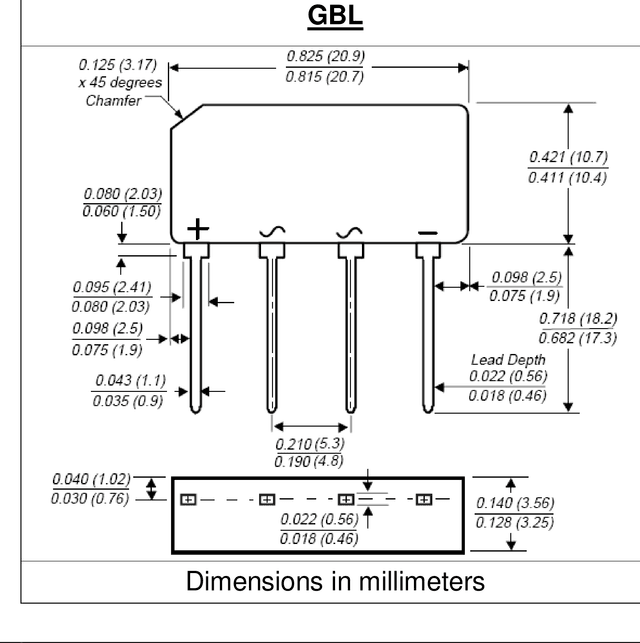

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Category
Bridge Rectifier
Datasheet
G2SB4×-E
Start Inquiry with G2SB480-E

Product Spectation

ParameterSymbolValue
Maximum Recurrent Peak Reverse VoltageVRRM800V
Maximum RMS VoltageVRMS560V
Maximum DC blocking VoltageVDC800V
Maximum average forward Tc=50°C rectified output current at Ta=40°C [Ta=50°C]If(av)4A
Maximum average forward Tc=50°C rectified output current at Ta=40°C [Ta=40°C]If(av)3A
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated loadIFSM150A
Maximum Forward Voltage at rated Forward Current and 25°CVf1V
Rating for fusing (t < 8.3ms)I2t93A²·s
Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃Ir5μA
Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃Ir500μA
Typical Thermal ResistanceRth(ja)47°C/W
Typical Thermal ResistanceRth(jl)10°C/W
Operating junction and storage temperature rangeTj, TSTG-55to+150
Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C]Ir-
Maximum thermal resistance per legRth(jc)-
Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=125°C]Ir-
Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°CIf(av)-

Features

  • Plastic package has Underwriters Laboratory
  • Flammability Classification 94V-0
  • Glass passivated chip junction
  • High case dielectric strength
  • High surge current capability
  • Ideal for printed circuit boards
  • This series is UL listed under Recognized Component Index,
  • file number E330278
  • Halogen Free

Mechanical Data

Terminals
Plated leads solderable per J-STD-002
Case
Molded plastic body over passivated junctions
Mounting Position
Any

Notes

  • [1]Unit mounted on 3.0 x 3.0 x 0.11" thick (7.5 x 7.5 x 0.3 cm) Aluminum plate
  • [2]Unit mounted on P.C.B. at 0.375" (9.5mm) lead length and 0.5 x 0.5"(12 x 12mm) copper pads
