GBL4100

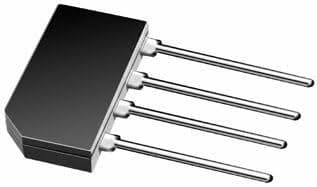

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 1600V |
| Maximum RMS Voltage | VRMS | 1120V |
| Maximum DC blocking Voltage | VDC | 1600V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 4A |
| Maximum average forward Tc = 100℃ Rectified output current at Ta = 25℃ | If(av) | 4A |
| Maximum average forward Tc = 100℃ Rectified output current at Ta = 25℃ | If(av) | 3A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 150A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 1.1V |
| Rating for fusing (t < 8.3ms) | I2t | 93A²·s |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C] | Ir | 5μA |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=125°C] | Ir | 500μA |
| Typical Thermal Resistance | Rth(ja) | 22°C/W |
| Maximum thermal resistance per leg | Rth(jc) | 3.5°C/W |
| Typical Junction Capacitance | Cj | 40pF |
| Operating junction and storage temperature range | Tj, TSTG | -55to+150 |
