GBPC604
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Bridge Rectifier
- Datasheet
- GBPC6×
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 400V |
| Maximum RMS Voltage | VRMS | 280V |
| Maximum DC blocking Voltage | VDC | 400V |
| Maximum average forward Tc = 100℃ Rectified output current at Ta = 25℃ | If(av) | 6A |
| Maximum average forward Tc = 100℃ Rectified output current at Ta = 25℃ | If(av) | 3A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 175A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 1V |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 5μA |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 500μA |
| Typical Junction Capacitance | Cj | 186pF |
| Operating Temperature Range | Tj | -55to+125 |
| Storage and Operation Junction Temperature | TSTG | -55to+150 |
| Rating for fusing (t < 8.3ms) | I2t | - |
| Operating junction and storage temperature range | Tj, TSTG | - |
| Typical Thermal Resistance | Rth(ja) | - |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C] | Ir | - |
| Maximum thermal resistance per leg | Rth(jc) | - |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=125°C] | Ir | - |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | - |
Features
- Surge overload rating:175 A peak
- High case dielectric strength
- Glass passivated chip design
Mechanical Data
- Terminal
- Plated leads solderable per J-STD-002
- Case
- UL-94 Class V-0 recognized Flame Retardant Epoxy
- Polarity
- Polarity symbol marked on body

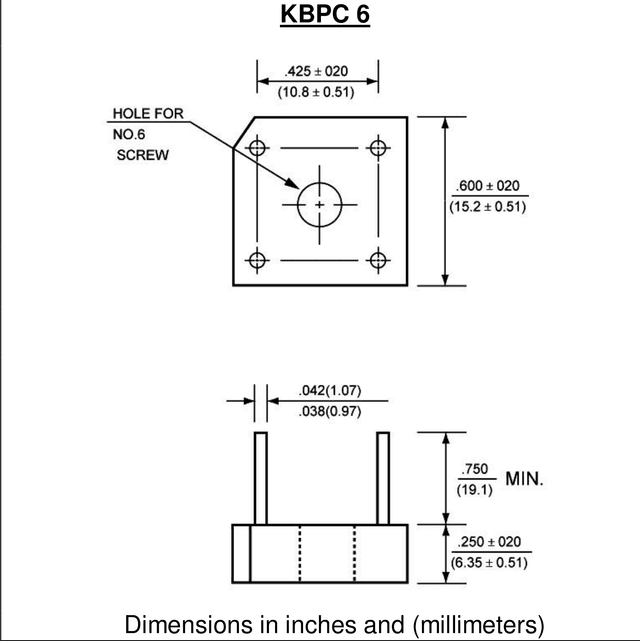

- Mounting
- Hole thru for # 6 screw
