GL1510-E
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- SMD Bridge Rectifier
- Datasheet
- GL1510-E
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 1000V |
| Maximum RMS Voltage | VRMS | 700V |
| Maximum DC blocking Voltage | VDC | 1000V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 1.5A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 50A |
| Rating for fusing (t < 8.3ms) | I2t | 10.65A²·s |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 1V |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 5μA |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 100μA |
| Maximum thermal resistance per leg | Rth(jc) | 13°C/W |
| Storage and Operating Junction Temperature | TSTG, Tj | -55to+150 |
| Typical Thermal Resistance | Rth(jl) | - |
| Typical Thermal Resistance | Rth(ja) | - |
| Typical Junction Capacitance | Cj | - |
Features
- Ideal for printed circuit board
- Glass passivated chip
- Reliable low cost construction utilizing molded plastic
- technique
- High surge current capability
- Small size, simple installation
- High temperature soldering guaranteed: 260℃/10 seconds
- Halogen Free

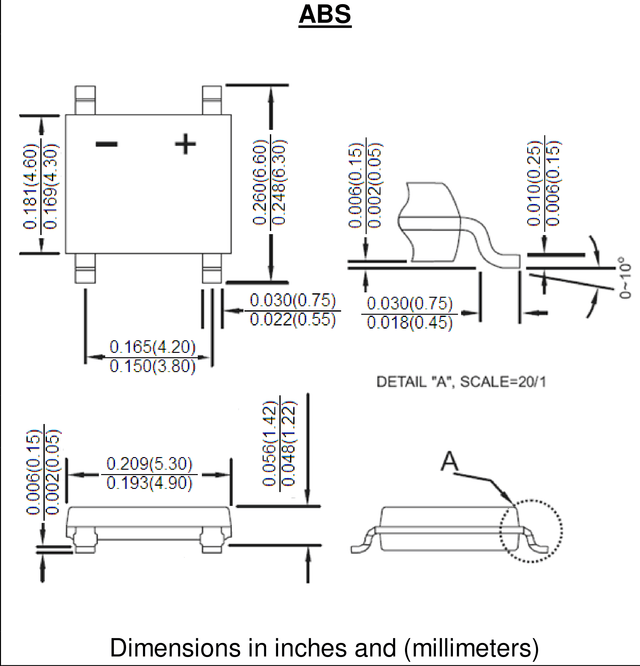

Mechanical Data
- Terminal
- Plated leads solderable per J-STD-002
- Case
- UL-94 Class V-0 recognized Halogen Free Epoxy
- Polarity
- Polarity symbol marked on body
