MURS240
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Ultrafast Rectifier
- Datasheet
- MURS2×0
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 400V |
| Maximum RMS Voltage | VRMS | 280V |
| Maximum DC blocking Voltage | VDC | 400V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 2A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 50A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 0.94V |
| Maximum Reverse Recovery Time | TRR | 20ns |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 5μA |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 150μA |
| Typical Junction Capacitance | Cj | 30pF |
| Typical Thermal Resistance | Rth(jl) | 13°C/W |
| Operating junction and storage temperature range | Tj, TSTG | -55to+150 |
| Storage and Operating Junction Temperature | TSTG, Tj | - |
Features
- Ideal for surface mount pick and place application
- Low profile package
- Built-in strain relief
- High surge capability
- High temperature soldering guaranteed
- 260℃/10sec/at terminals
- Glass passivated chip
- Ultrafast recovery time for high efficiency

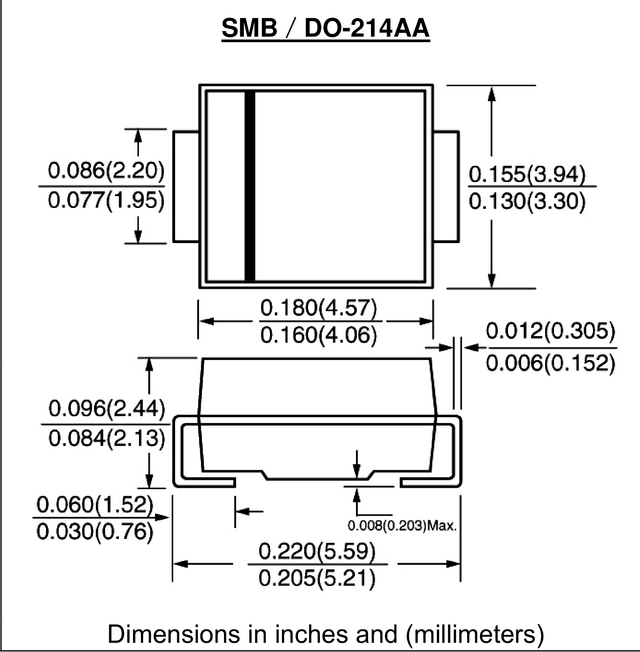

Mechanical Data
- Terminal
- Plated axial leads solderable per MIL-STD 202E, method 208C
- Case
- Molded with UL-94 class V-0 recognized Flame Retardant Epoxy
- Polarity
- color band denotes cathode
Notes
- [1]Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A
- [2]Measured at 1.0 MHZ and applied voltage of 4.0Vdc
- [3]Thermal Resistance from Junction to terminal mounted on 5×5mm copper pad area
