RG3M

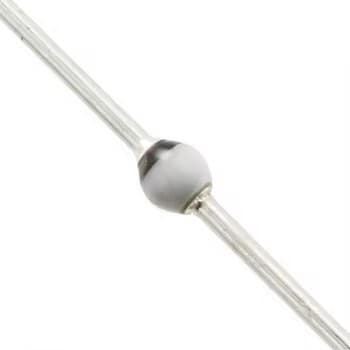

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Avalanche Rectifier
- Datasheet
- RG3M
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 1000V |
| Maximum RMS Voltage | VRMS | 700V |
| Maximum DC blocking Voltage | VDC | 1000V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta=55℃ | IFAV | 3A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 100A |
| Maximum Forward Voltage at rated Forward Current and 25℃ | VF | 1.3V |
| Maximum DC Reverse Current at V =1000V and 25℃ DC | IR | 5μA |
| Maximum DC Reverse Current at V =1000V and 150℃ DC | IR | 100μA |
| Maximum Reverse Recovery Time | TRR | 300ns |
| Typical Junction Capacitance | Cj | 50pF |
| Typical Thermal Resistance | Rth(ja) | 20°C/W |
| Storage and Operating Junction Temperature | TSTG, Tj | -65to+175 |
Features
- Glass passivated
- Hermetically sealed package
- Low reverse current
- Soft recovery characteristics
Mechanical Data
- Terminal
- Plated axial leads solderable per J-STD-002

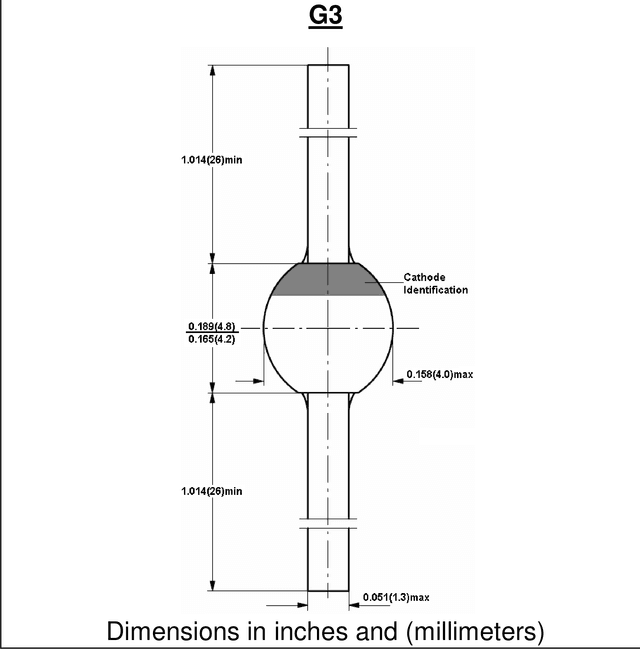

- Case
- G-3 sintered glass case
- Polarity
- color band denotes cathode
- Mounting Position
- any
Notes
- [1]Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A
- [2]Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc
- [3]Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted
