SB10100FCT
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Schottky Rectifier
- Datasheet
- SB10100FCT
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 100V |
| Maximum RMS Voltage | VRMS | 70V |
| Maximum DC blocking Voltage | VDC | 100V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 10A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 150A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 0.76V |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C] | Ir | 50μA |
| Maximum DC Reverse Current Ta =25°C at rated DC blocking voltage Ta =110°C [Ta=110°C] | Ir | 4.5μA |
| Maximum thermal resistance per leg | Rth(jc) | 4.2°C/W |
| Operating Temperature Range | Tj | -65 to +175 |
| Storage and Operation Junction Temperature | TSTG | -65 to +175 |
Features
- High current capability, Low forward voltage drop
- Low power loss, high efficiency
- High surge capability
- High temperature soldering guaranteed
- 250°C /10sec/0.375" lead length at 5 lbs tension
Mechanical Data
- Case

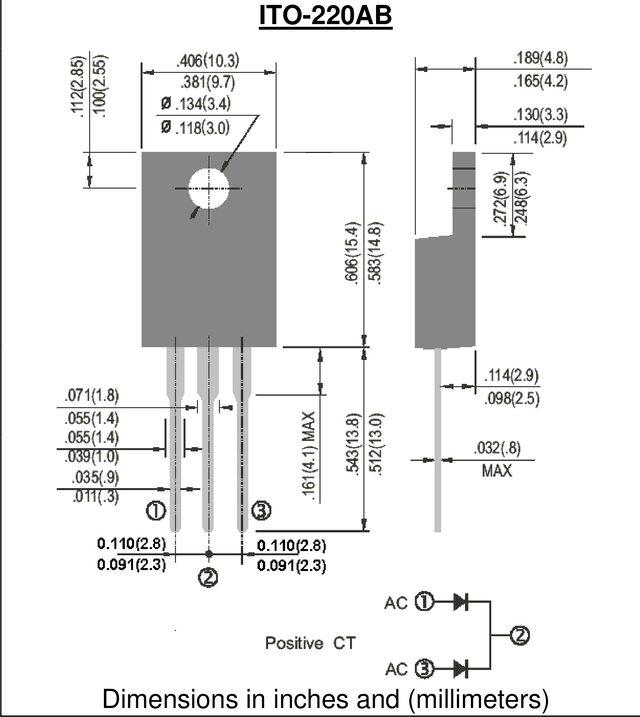

- JEDEC ITO-220 molded plastic body
- Terminals
- Plated leads, solderable per MIL-STD-750, Method 2026
- Polarity
- Color band denotes cathode end
- Mounting Position
- Any
Notes
- [1]Thermal Resistance from Junction to Case
