SB1645CT

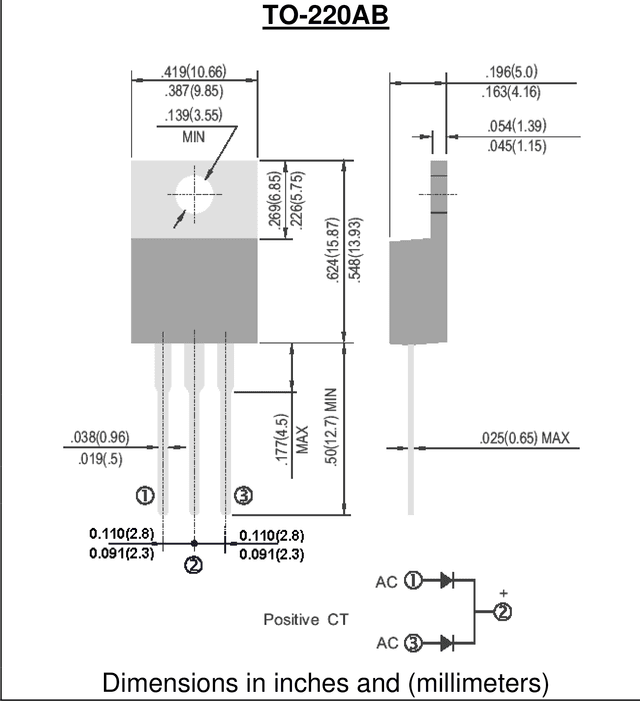

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Schottky Rectifier
- Datasheet
- SB1620CT-SB1660CT
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 45V |
| Maximum RMS Voltage | VRMS | 32V |
| Maximum DC blocking Voltage | VDC | 45V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 16A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 150A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 0.65V |
| Maximum DC Reverse Current Ta =25ºC at rated DC blocking voltage Ta =100ºC | Ir | 1mA |
| Typical Junction Capacitance | Cj | 700pF |
| Typical Thermal Resistance | R(ja) | 3°C/W |
| Operating Temperature Range | Tj | -40to+125 |
| Storage and Operation Junction Temperature | TSTG | -65to+150 |
Features
- High current capability, Low forward voltage drop
- Low power loss, high efficiency
- High surge capability
- High temperature soldering guaranteed
- 250°C /10sec/0.375" lead length at 5 lbs tension
Mechanical Data
- Terminal
- Plated axial leads solderable per MIL-STD 202E, method 208C
- Case
- Molded with UL-94 Class V-0 recognized Flame Retardant Epoxy
- Polarity
- Common Cathode
- Mounting Position
- any
Notes
- [1]Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc
- [2]Thermal Resistance from Junction to Case
