SLB210

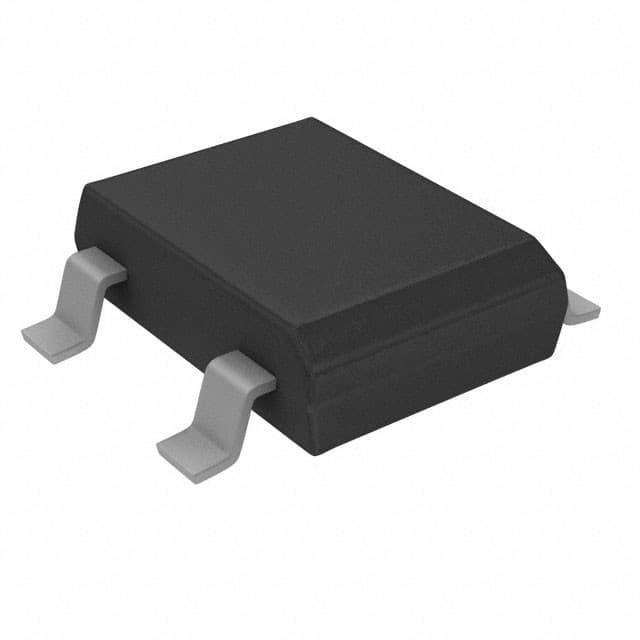

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- SMD Bridge Rectifier
- Datasheet
- SLB210
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 100V |
| Maximum RMS Voltage | VRMS | 70V |
| Maximum DC blocking Voltage | VDC | 100V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 2A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 50A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 0.84V |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 4μA |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 1μA |
| Maximum thermal resistance per leg | Rth(jc) | 30°C/W |
| Storage and Operating Junction Temperature | TSTG, Tj | -55to+150 |
| Typical Thermal Resistance | Rth(jl) | - |
| Typical Thermal Resistance | Rth(ja) | - |
| Typical Junction Capacitance | Cj | - |
Features
- Ideal for printed circuit board
- Reliable low cost construction utilizing molded plastic
- technique
- Small size, simple installation
- Low power loss, high efficiency
- Low forward voltage, high current capability
- High surge capacity
Mechanical Data
- Terminal
- Plated leads solderable per J-STD-002
- Case
- UL-94 Class V-0 recognized Flame Retardant Epoxy
- Polarity
- Polarity symbol marked on body
