UG4KB80-27C-T12
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- Bridge Rectifier
- Datasheet
- UG4KB80-T12
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| A | A | 6.0±0.5 |
| B | B | 6.0max. |
| C | C | 3.8±0.5 |
| D | D | 5.0±0.5 |
| E | E | 3.0±0.5 |
| F | F | 0.38min. |
| G | G | 0.38min. |
| Maximum DC blocking Voltage | VDC | - |
| Maximum RMS Voltage | VRMS | - |
| Maximum Recurrent Peak Reverse Voltage | VRRM | - |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | - |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | - |
| Rating for fusing (t < 8.3ms) | I2t | - |
| Operating junction and storage temperature range | Tj, TSTG | - |
| Typical Thermal Resistance | Rth(ja) | - |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=25°C] | Ir | - |
| Maximum thermal resistance per leg | Rth(jc) | - |
| Maximum DC reverse current at Ta = 25°C rated DC blocking voltage per leg Ta = 125°C [Ta=125°C] | Ir | - |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | - |
Features
- Glass passivated chip junction
- High case dielectric strength
- High surge current capability
- Ideal for printed circuit board
- This series is UL listed under Recognized Component Index,
- file number E330278

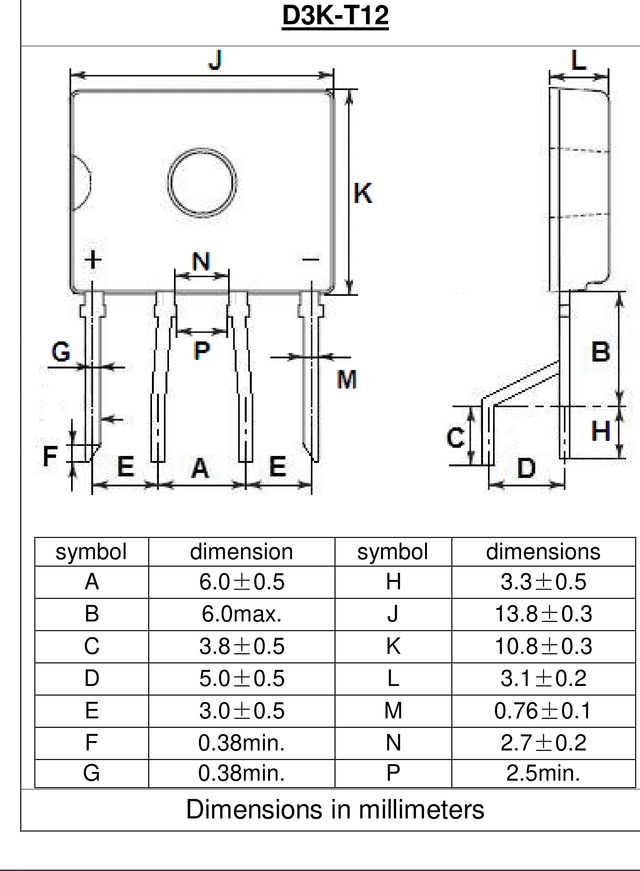

- symbol
- dimension
- symbol
- A
- 6.0±0.5
- H
- 3.3±0.5
- B
- 6.0max.
- J
- 13.8±0.3
- C
- 3.8±0.5
- K
- 10.8±0.3
- D
- 5.0±0.5
- L
- 3.1±0.2
- E
- 3.0±0.5
- M
- 0.76±0.1
- F
- 0.38min.
- N
- 2.7±0.2
- G
- 0.38min.
- P
- 2.5min.
Mechanical Data
- Terminal
- Plated leads solderable per J-STD-002
- Case
- UL-94 Class V-0 recognized Flame Retardant Epoxy
- Polarity
- Polarity symbol marked on body
- Mounting Position
- any
