UMD06

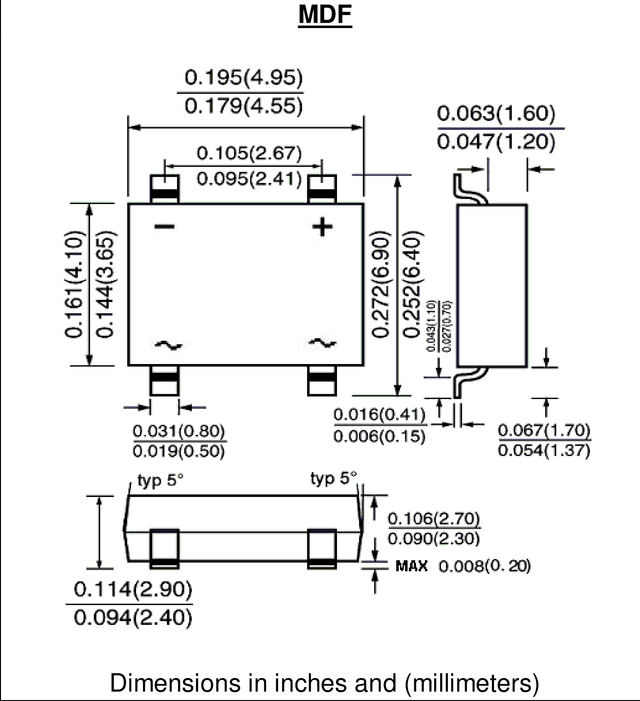

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
- Category
- SMD Bridge Rectifier
- Datasheet
- UMD06
Product Spectation
| Parameter | Symbol | Value |
|---|---|---|
| Maximum Recurrent Peak Reverse Voltage | VRRM | 600V |
| Maximum RMS Voltage | VRMS | 420V |
| Maximum DC blocking Voltage | VDC | 600V |
| Maximum Average Forward Rectified Current 3/8”lead length at Ta =55°C | If(av) | 0.8A |
| Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load | IFSM | 30A |
| Maximum Forward Voltage at rated Forward Current and 25°C | Vf | 1.25V |
| Maximum Reverse Recovery Time | TRR | 75ns |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 5μA |
| Maximum DC Reverse Current Ta =25℃ at rated DC blocking voltage Ta =125℃ | Ir | 500μA |
| Typical Junction Capacitance | Cj | 15pF |
| Operating junction and storage temperature range | Tj, TSTG | -55to+150 |
| Storage and Operating Junction Temperature | TSTG, Tj | - |
| Typical Thermal Resistance | Rth(jl) | - |
| Typical Thermal Resistance | Rth(ja) | - |
Features
- For surface mount application
- Reliable low cost construction utilizing molded plastic
- Technique
- Surge overload rating: 30A peak
Mechanical Data
- Terminal
- Plated leads solderable per J-STD-002
- Case
- UL-94 Class V-0 recognized Flame Retardant Epoxy
- Polarity
- Polarity symbol marked on body
- Mounting Position
- any
Notes
- [1]Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A
- [2]Measured at 1.0 MHz and applied voltage of 4.0 volt
